TAS - Telescope Antenna System
Logarithmic periodic Antenna LPA8
 Directional antenna with 8 telescopic elements
90 MHz - 1 GHz
incl. mount
vertical/horizontal polarization
For FM-/TV-DXers and Scanner enthusiasts
This antenna was originally created as a Dual band antenna for radio amateurs, and may be used with a power of 100 W in the 2m- and 70cm-Band.
Logarithmic periodic antennas are broadband antennas, so this one offers an interesting solution for FM- and TV DXers as well as for scanner freaks - also for use at camping cars, a weekend-QTH or DX-Camps.
Eight telescopic elements will bring new signals to your scanner and on your TV screen. The included mount allows vertical and horizontal polarization, and fixes the antenna to the telescopic tower at a height of app. 8 meters. Like all components of the TAS this antenna offers good transportability, solid construction and easy installation.
Technical Data:
Weight: 390 g
Frequency range: As receiving antenna from ca. 90 MHz - 1 GHz;
directional already at 90 MHz, gain from ca. 100 MHz (compared to telescope antenna)
Front-Back Ratio: > 20 db in the 2m band, > 25 dB in the 70 cm band
Gain over dipole: 5,3 dB in the 2m Band, 9 dB in the 70 cm Band
Impedance: 50 Ohm
Connector: BNC
Mount: Prepared for masts up to 18 mm
Material: Boom - Aluminium; Elements - chromium brass; Screws - V2A steel; Housing - ABS
|
 |
 |

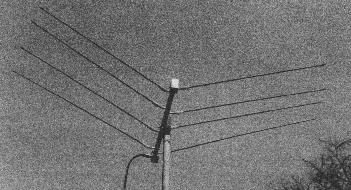

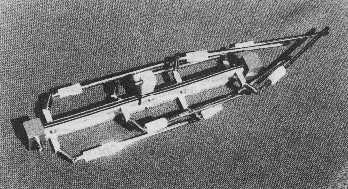

LPA8 mounted horizontally LPA8 folded up for transport
|
 |
 |
|
